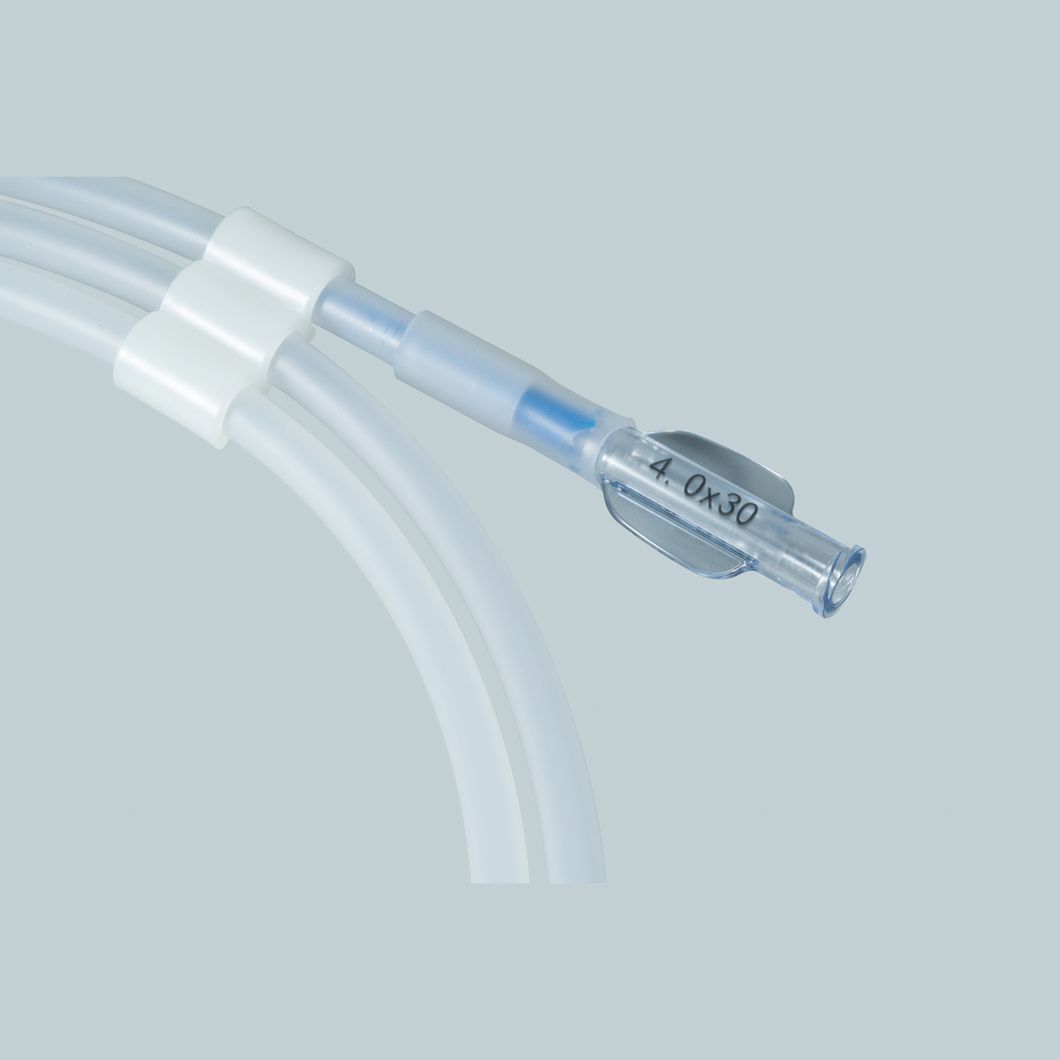

Product Description

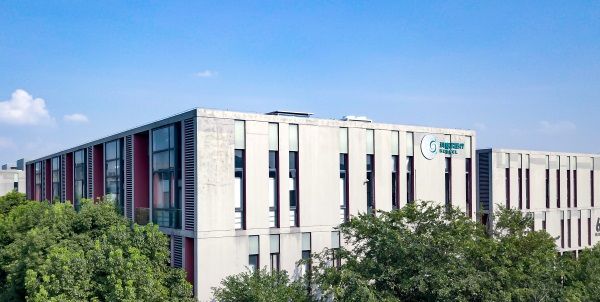

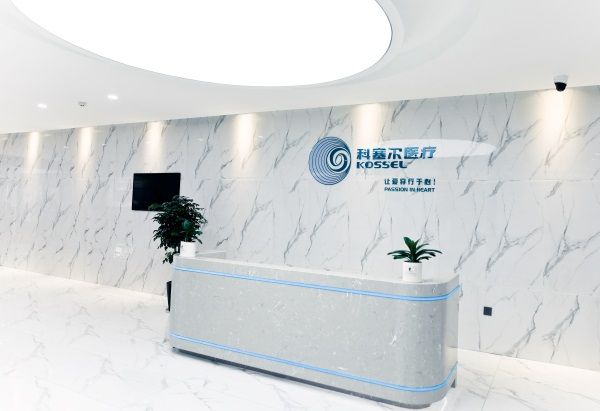

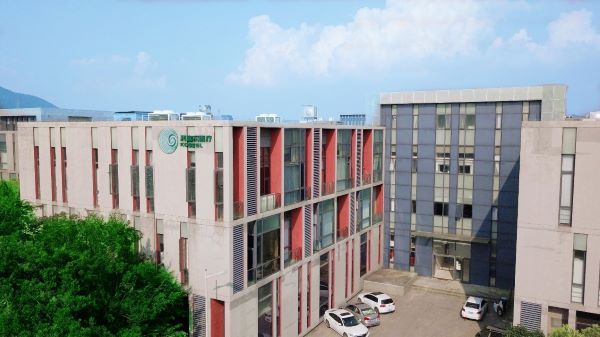

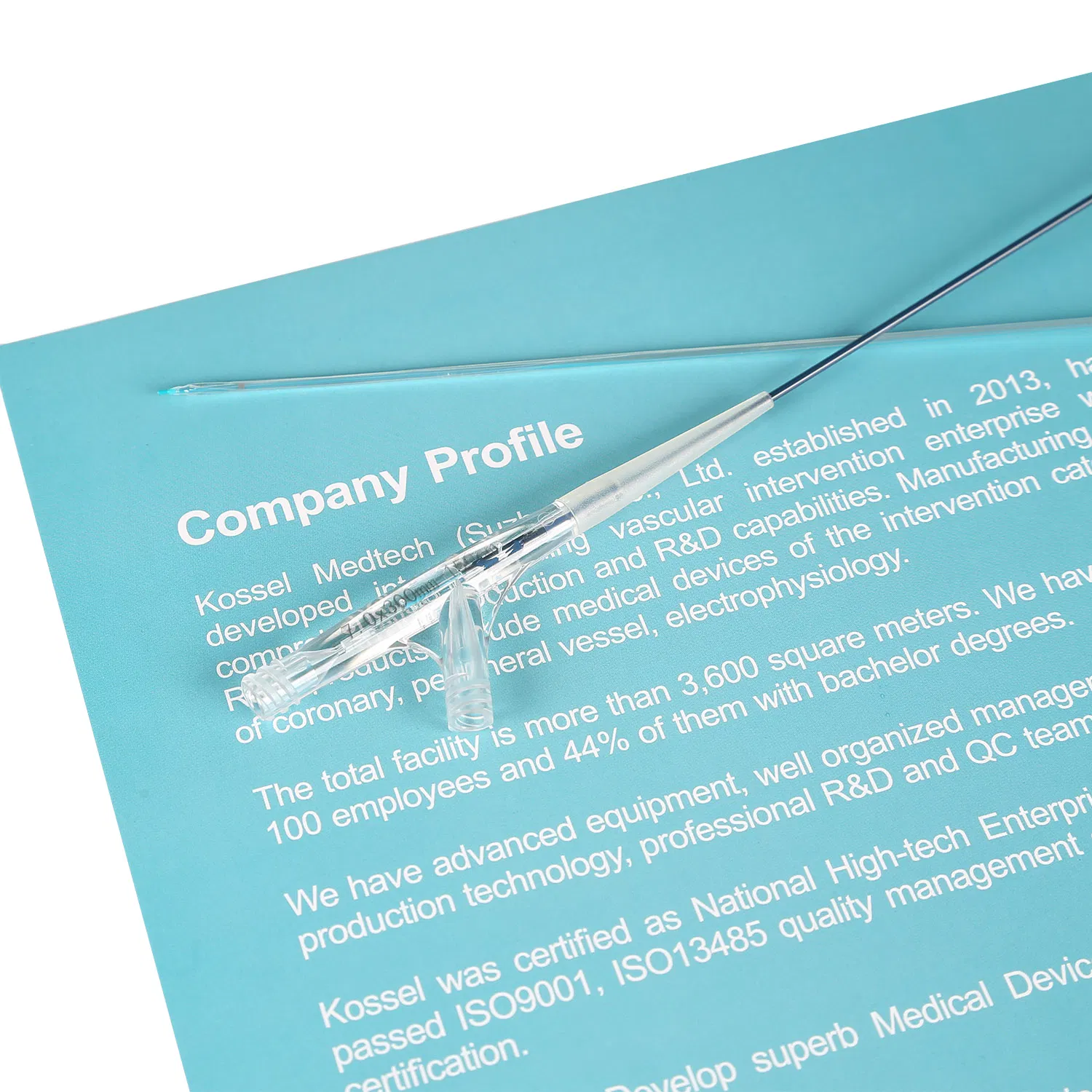

Company Profile

Kossel Medtech (Suzhou) Co., Ltd. with the headquarter in Suzhou China, was coestablished by experts in US and domestic R&D team in 2013. Kossel Medtech focus on R&D, manufacturing and sales of Class 3 interventional cardiovascular medical devices, including products for peripheral vess,elelectrophysiology,coronary and technical service.Kossel Medtech's main clients are overseas and domestic high-end medical devices manufacturers, distributors and hospitals.

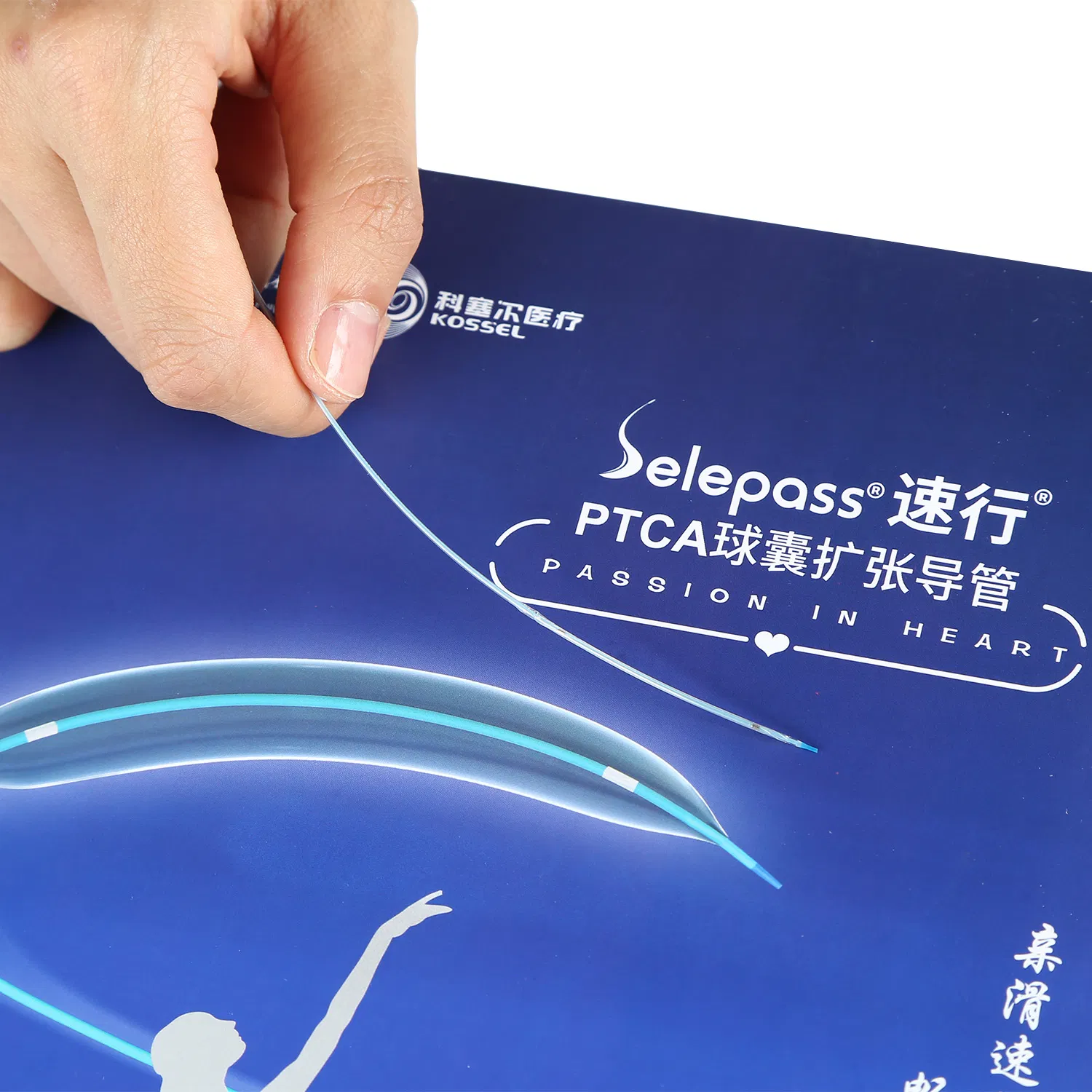

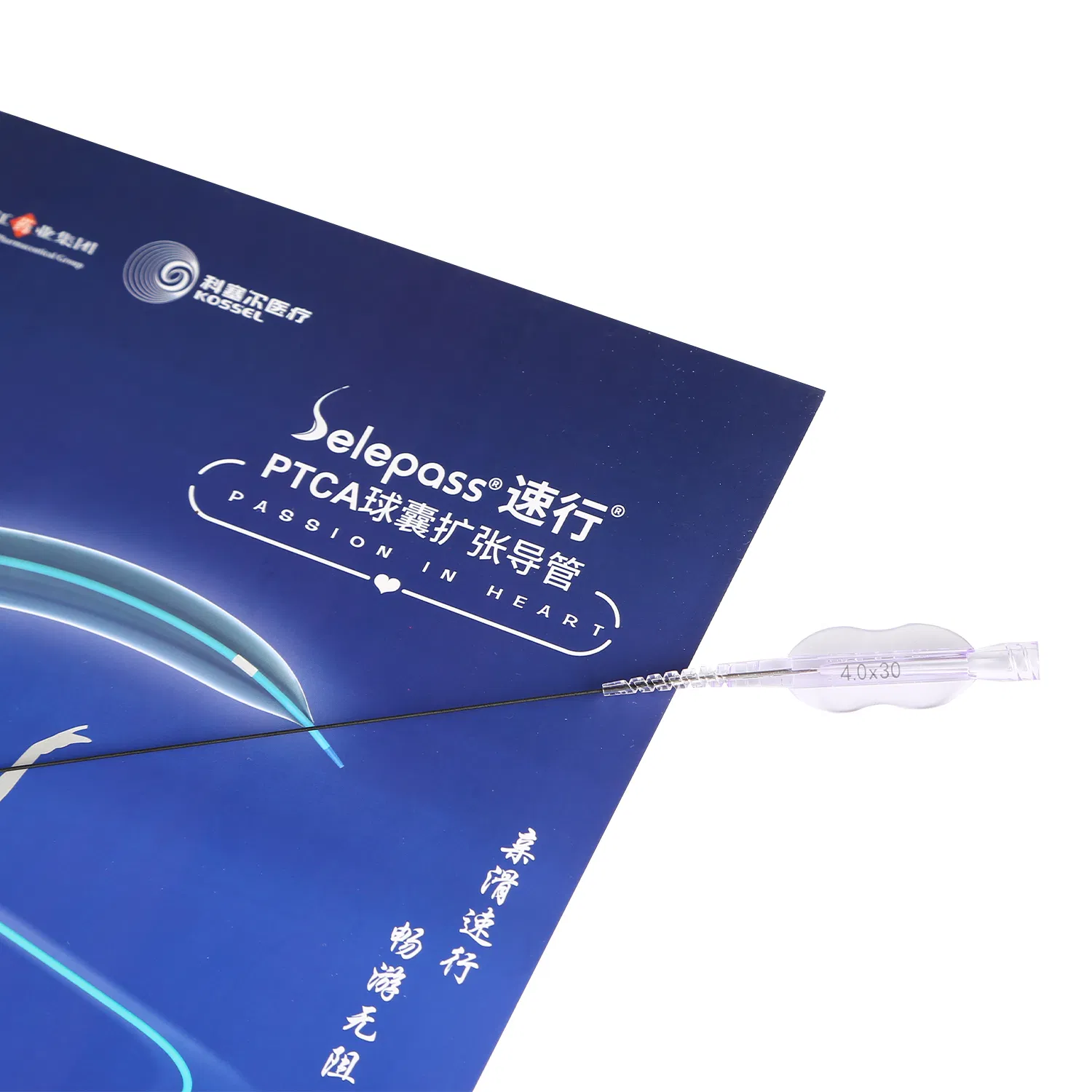

Product Feature
1.The advanced laser bonding technology ensures the balloon and the catheter smooth transition connection,that makes better cross ability.
2.Tip laser forming technique makes the balloon with a small entrance ,which can enhance the performance of crossing the stenosis; Soft tapered tip is designed to enhance the traceability of the catheter with the guide wire.
3.The 3-wings balloon fluting ensure that the balloon have a minimum profile to easier cross the stenosis easier.
4.Super-lubricity hydrophilic coating design can offer a superior delivery performance.
5.The tapered core wire can offer excellent delivery performance.

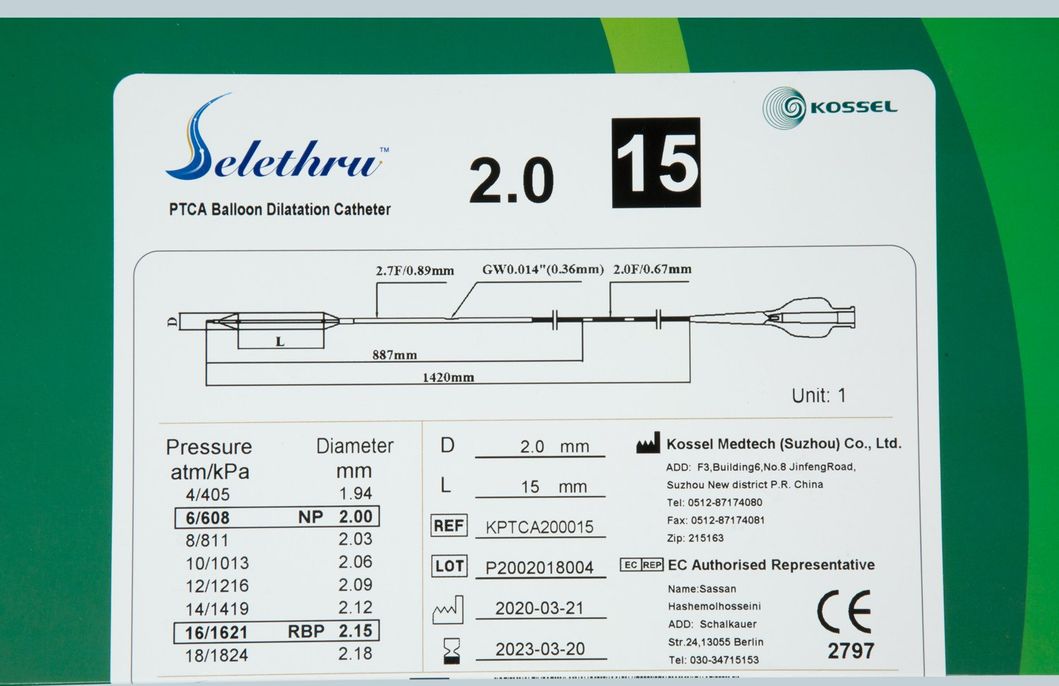

Balloon Compliance and Rated Burst Pressure

P/atm D/mm	Tolerance of Compliance:±5%
P/atm D/mm	6 (NP)	8	10	12	14	16 (RBP)	18
1.0	1.00	1.03	1.06	1.08	1.10	1.12	1.14
1.25	1.25	1.29	1.33	1.37	1.40	1.43	1.46
1.5	1.50	1.53	1.56	1.59	1.62	1.65	1.68
2.0	2.00	2.03	2.06	2.09	2.12	2.15	2.18
2.25	2.25	2.30	2.35	2.40	2.44	2.48	2.54
2.5	2.50	2.54	2.58	2.61	2.64	2.67	2.70
2.75	2.75	2.79	2.83	2.86	2.89	2.92	2.95
3.0	3.00	3.04	3.08	3.11	3.14	3.17	3.21
3.25	3.25	3.32	3.39	3.46	3.53	3.6	3.67
3.5	3.50	3.55	3.60	3.64	3.69	3.73	3.77
4.0	4.00	4.05	4.10	4.15	4.20	4.25	4.30

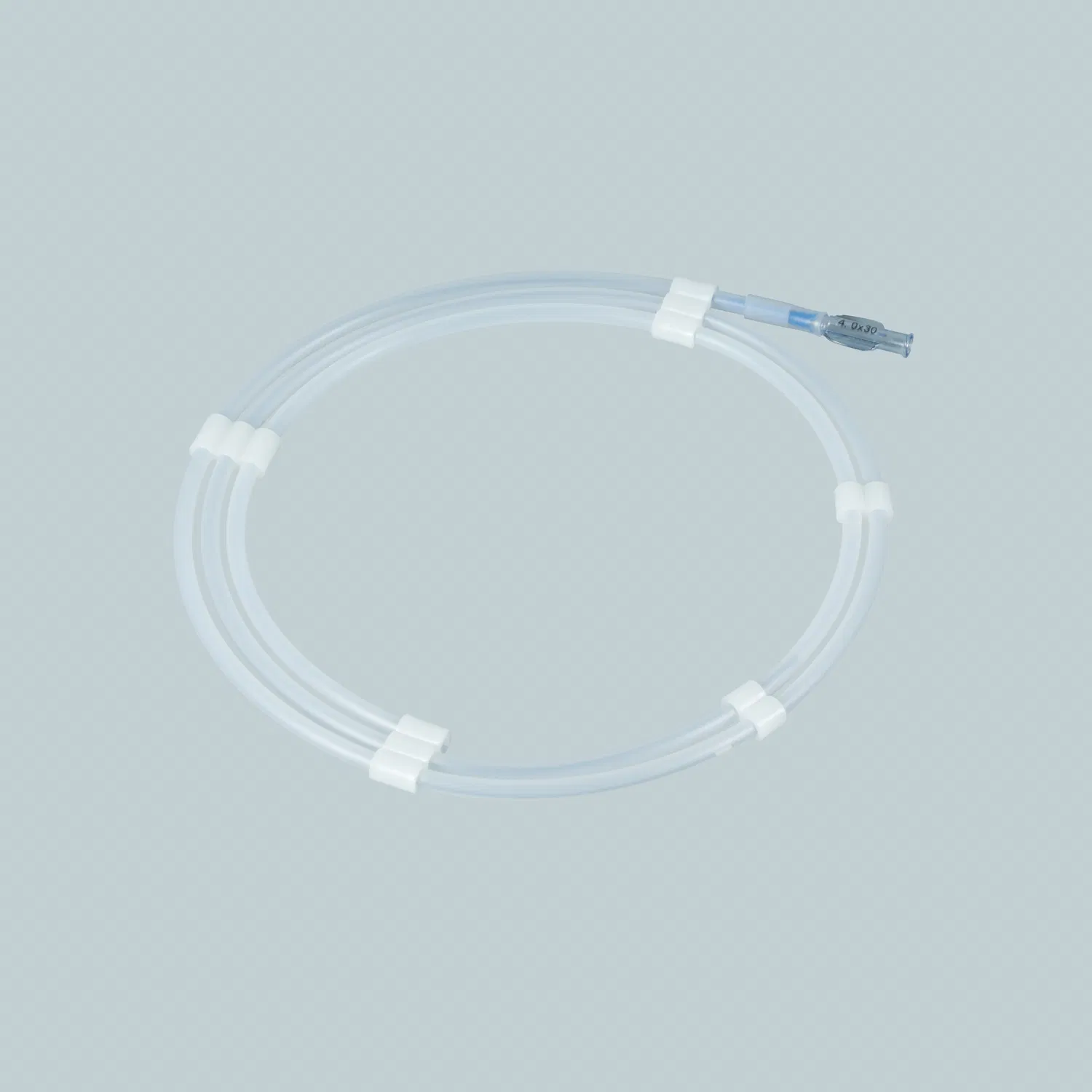

Size Matrix of PTCA Balloon Catheter

L/mm D/mm	10	15	20	25	30
1.0	√	√	-	-	-
1.25	√	√	-	-	-
1.5	√	√	√	√	-
2.0	√	√	√	√	√
2.25	√	√	√	√	√
2.5	√	√	√	√	√
2.75	√	√	√	√	√
3.0	√	√	√	√	√
3.25	√	√	√	√	√
3.5	√	√	√	√	√
4.0	√	√	√	√	√

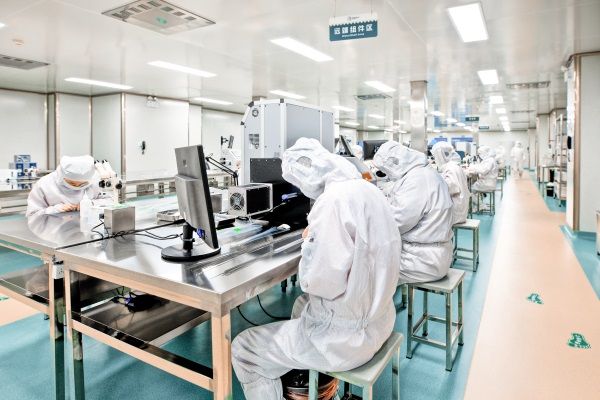

Production Line
We have class 10,000+ 100,000 clean room services, committed to the development of excellent quality products.

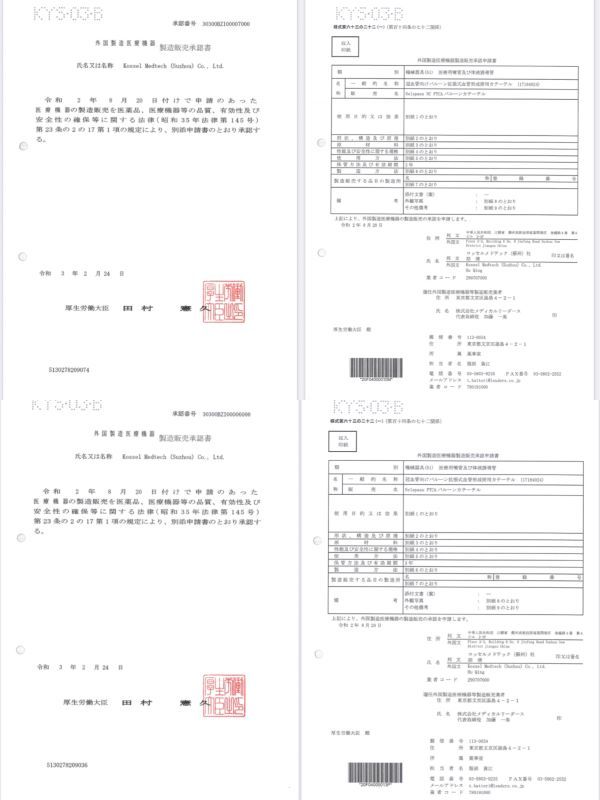

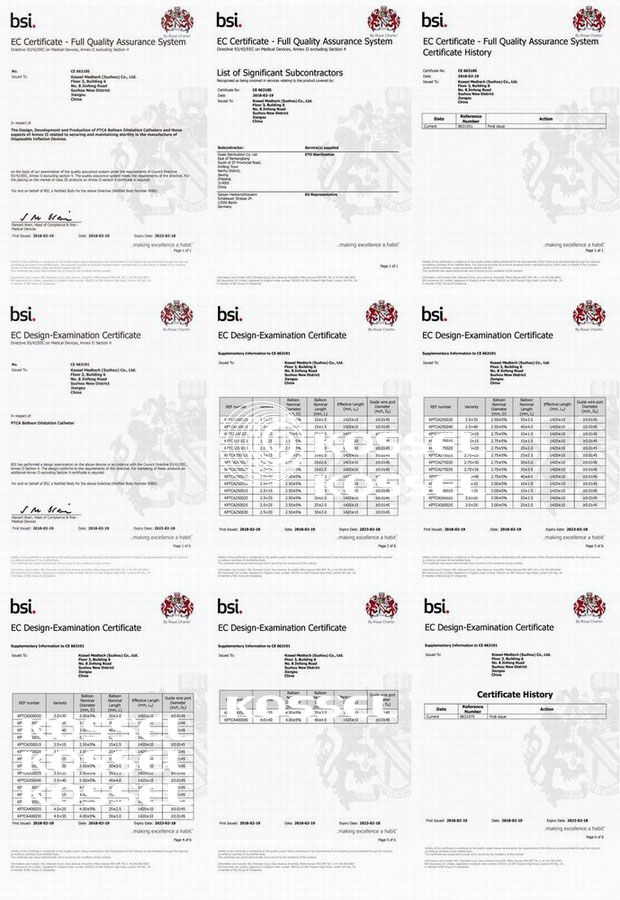

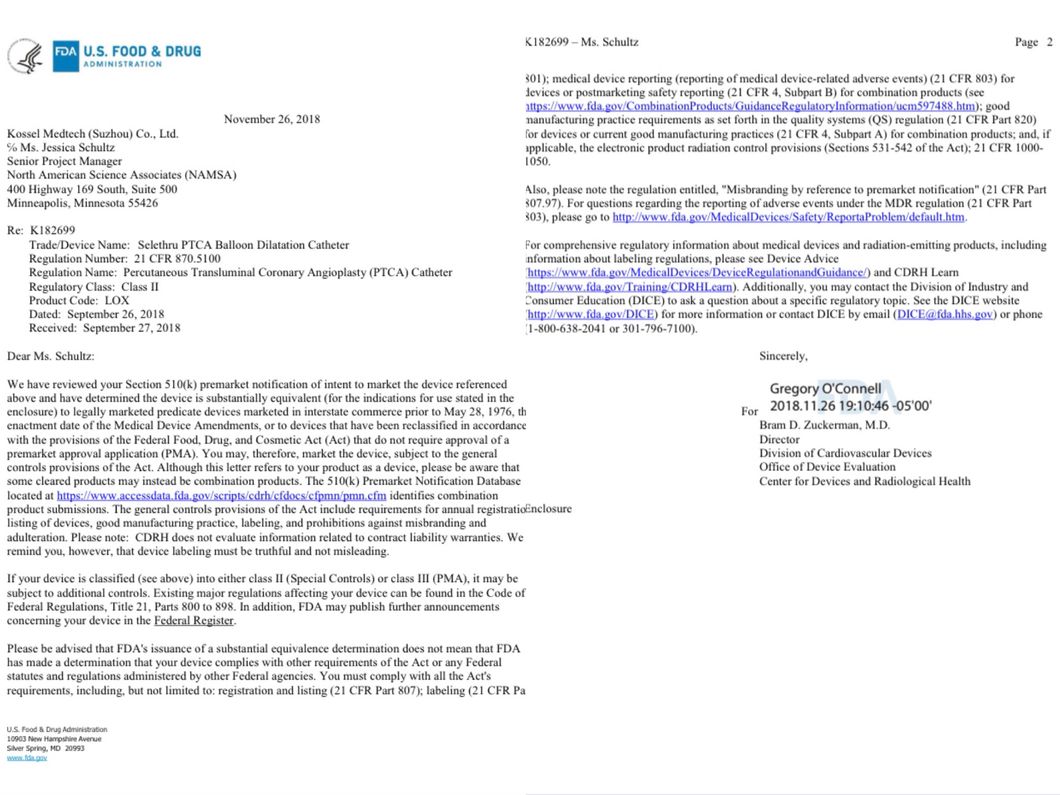

Certificate

Our Exhibition

Our products are of great quality and with competitive price.And have been praised In the domestic and overseas.

FAQ

What types of products do you offer?
We offer wide range of vascular interventional and implantable products, including PTCA, NC PTCA, CTO, PTA, inflation device, radial artery tourniquet, diagnostic electrophysiology catheter, cardiac ablation catheter, and vena cava filter.
Do you have certificates for your products?
Our facility is ISO 13485 (medical device quality management system) certified. Some of products have CE marks and FDA approval. Other products are being registered at this moment. Please contact us to check if your demand products can be distributed in your market.
Would you send me free samples?
In most cases, we offer one or two samples for your evaluation. Please advise your express account number to get free samples.
What is your minimum order qty (MOQ)?
There is no MOQ required. One piece is okay to be shipped.
What is the payment terms?
100% T/T payment in advance.
What is the lead time?
It depends on products. Please contact us for details.
Do you provide OEM service?
Yes, please send us your drawings and specifications to make your own brand product.Are
Are your products sterilized?
Yes, all of our products are EO sterilized.
How do you ensure products' quality?
Quality is life. We have conducted raw materials inspection, in progress quality control, finished products and package inspection according to ISO 13485 requirements. QA & QC is deployed throughout all processes. This is to ensure products you receive has zero defect.
