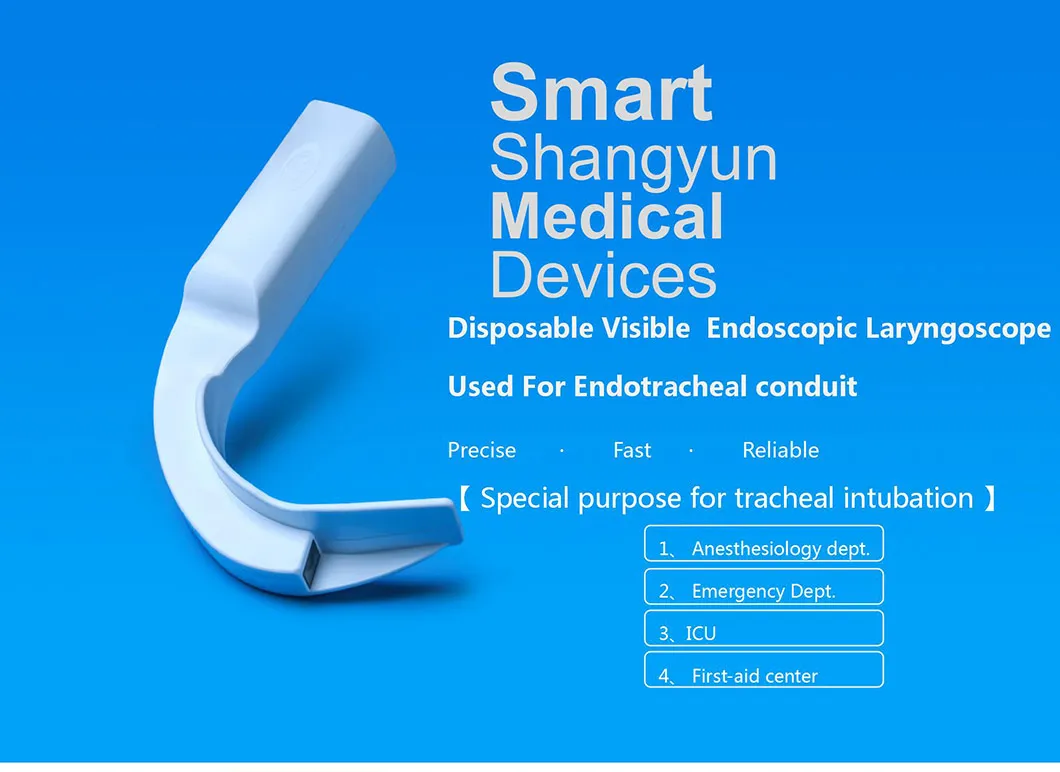

Difficult Airway Severely Ill Ventilator Airway Intubation Disposable Visual Laryngoscope

Disposable Visible Endoscopic Laryngoscope Used For Endotracheal Conduit
Precise ·   Fast   · Reliable
Special purpose for tracheal intubation
1, Anesthesiology dept. 2, Emergency Dept. 3,ICU 4, First-aid center

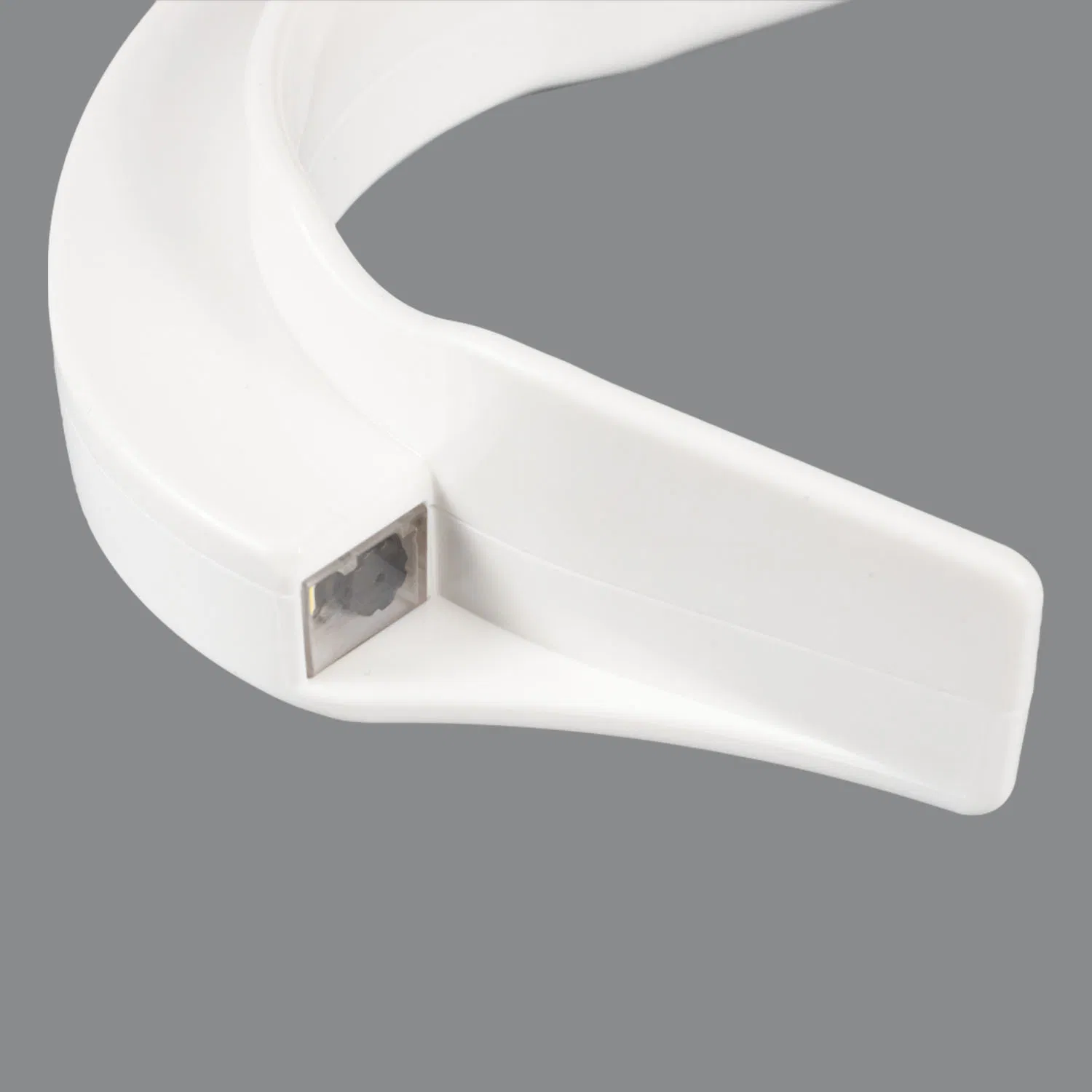

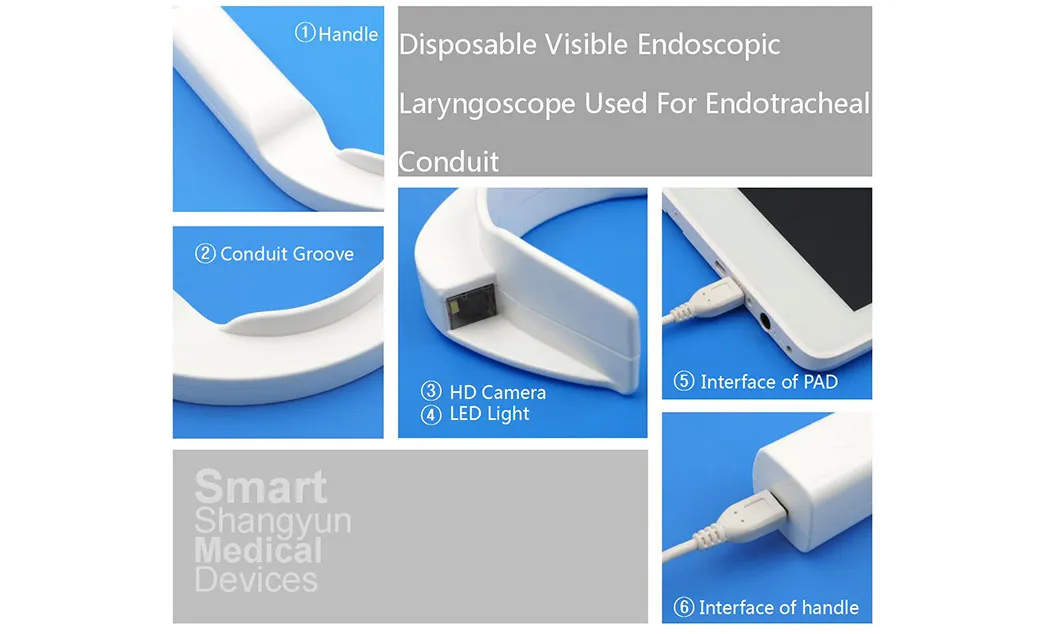

1,,Handle  2,Conduit Groove,3,HD Camera 4,LED Light 5,Interface of PAD  6,Interface of handle

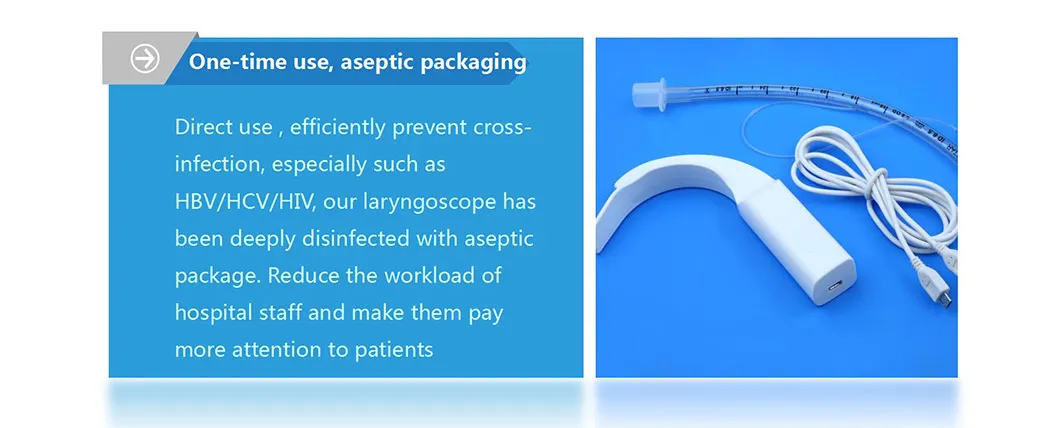

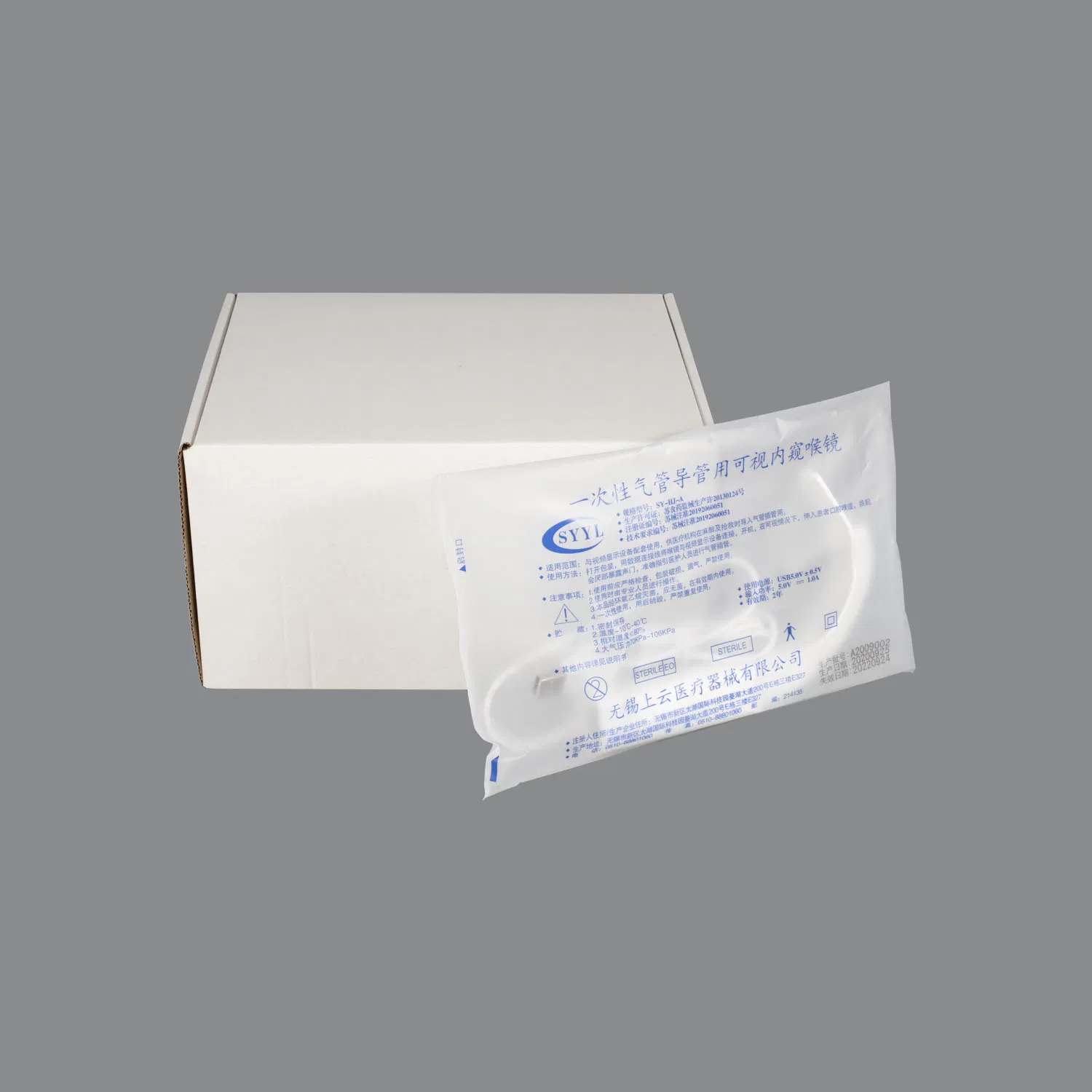

1,One-time use, aseptic packaging
Direct use , efficiently prevent cross-infection, especially such as HBV/HCV/HIV, our laryngoscope has been deeply disinfected with aseptic package. Reduce the workload of hospital staff and make them pay more attention to patients

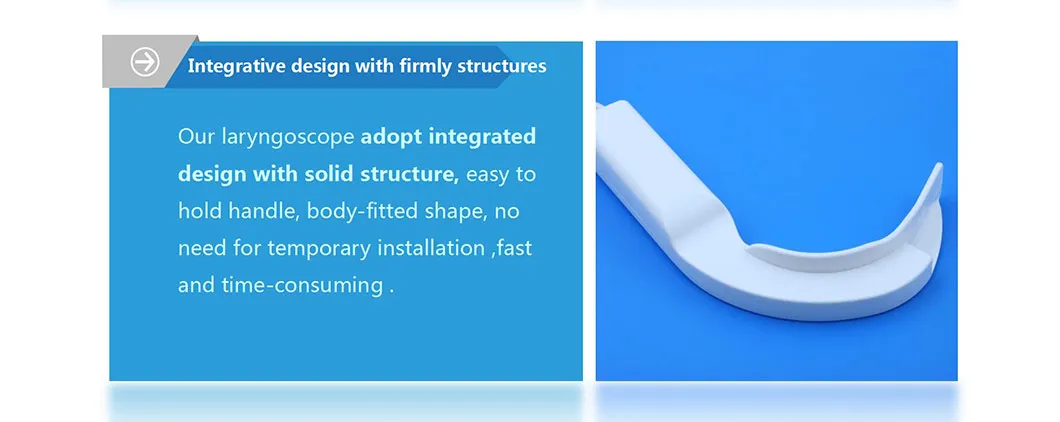

2,Integrative design with firmly structures
Our laryngoscope adopt integrated design with solid structure, easy to hold handle, body-fitted shape, no need for temporary installation ,fast and time-consuming .

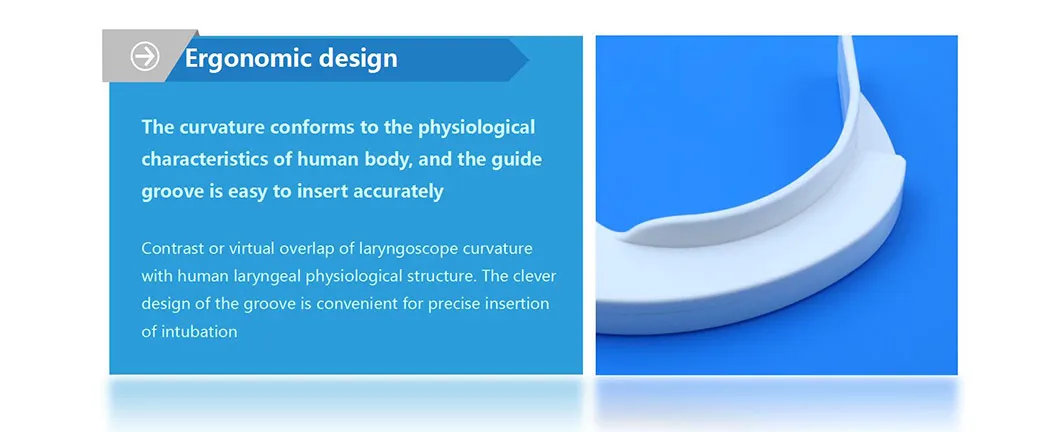

3,Ergonomic design
The curvature conforms to the physiological characteristics of human body, and the guide groove is easy to insert accurately .Contrast or virtual overlap of laryngoscope curvature with human laryngeal physiological structure. The clever design of the groove is convenient for precise insertion of intubation

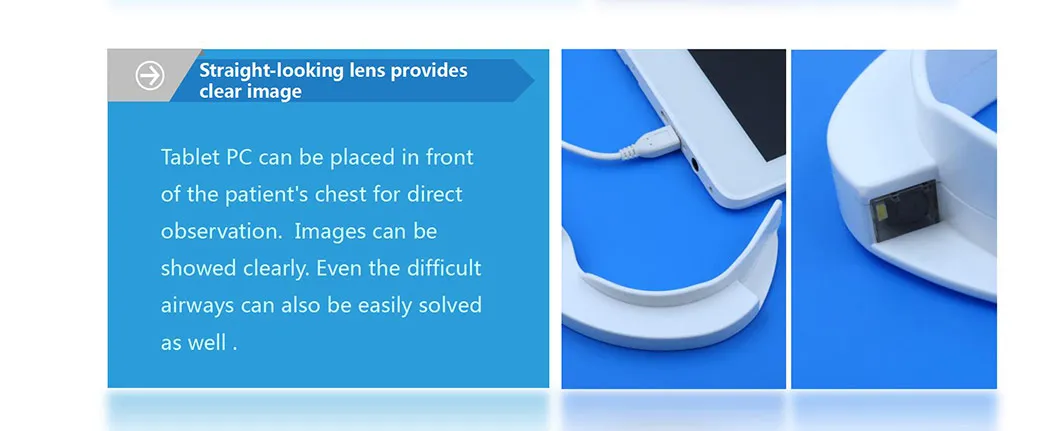

4.Straight-looking lens provides clear image
Tablet PC can be placed in front of the patient's chest for direct observation.  Images can be showed clearly. Even the difficult airways can also be easily solved as well .

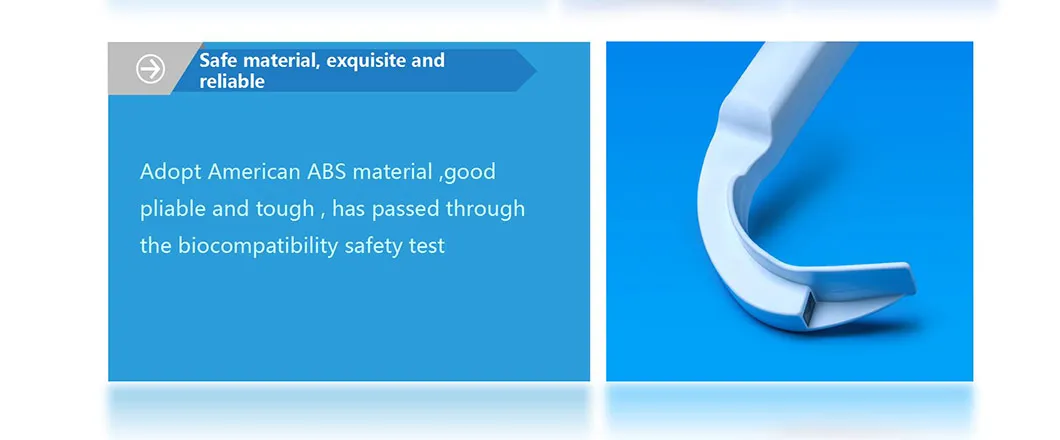

5.Safe material, exquisite and reliable
Adopt American ABS material ,good pliable and tough , has passed through the biocompatibility safety test

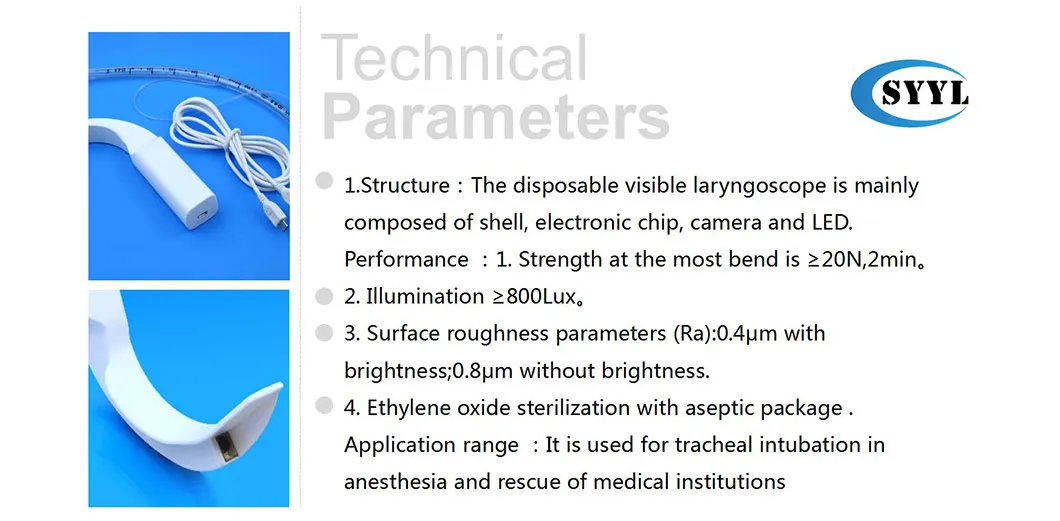

1.Structure:The disposable visible laryngoscope is mainly composed of shell, electronic chip, camera and LED.
Performance :1. Strength at the most bend is ≥20N,2min.
2. Illumination ≥800Lux.
3. Surface roughness parameters (Ra):0.4μm with brightness;0.8μm without brightness.

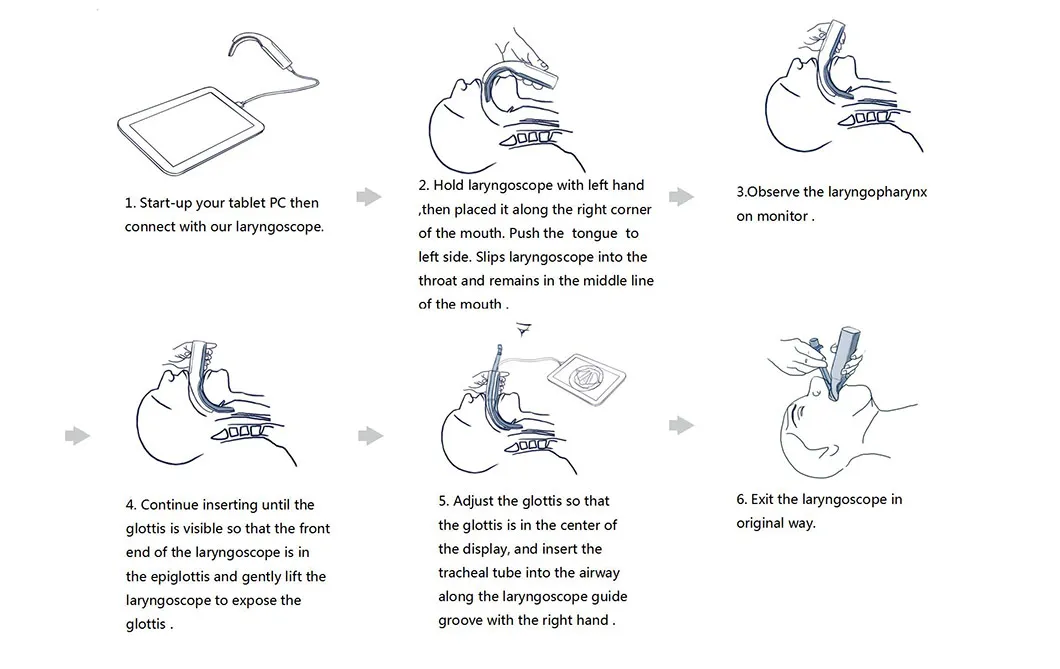

4. Ethylene oxide sterilization with aseptic package . Application range :It is used for tracheal intubation in anesthesia and rescue of medical institutions1. Start-up your tablet PC then connect with our laryngoscope
2. Hold laryngoscope with left hand ,then placed it along the right corner of the mouth. Push the  tongue  to  left side. Slips laryngoscope into the throat and remains in the middle line of the mouth .
3.Observe the laryngopharynx on monitor .
4. Continue inserting until the glottis is visible so that the front end of the laryngoscope is in the epiglottis and gently lift the laryngoscope to expose the glottis .
5. Adjust the glottis so that the glottis is in the center of the display, and insert the tracheal tube into the airway along the laryngoscope guide groove with the right hand .
6. Exit the laryngoscope in original way.
