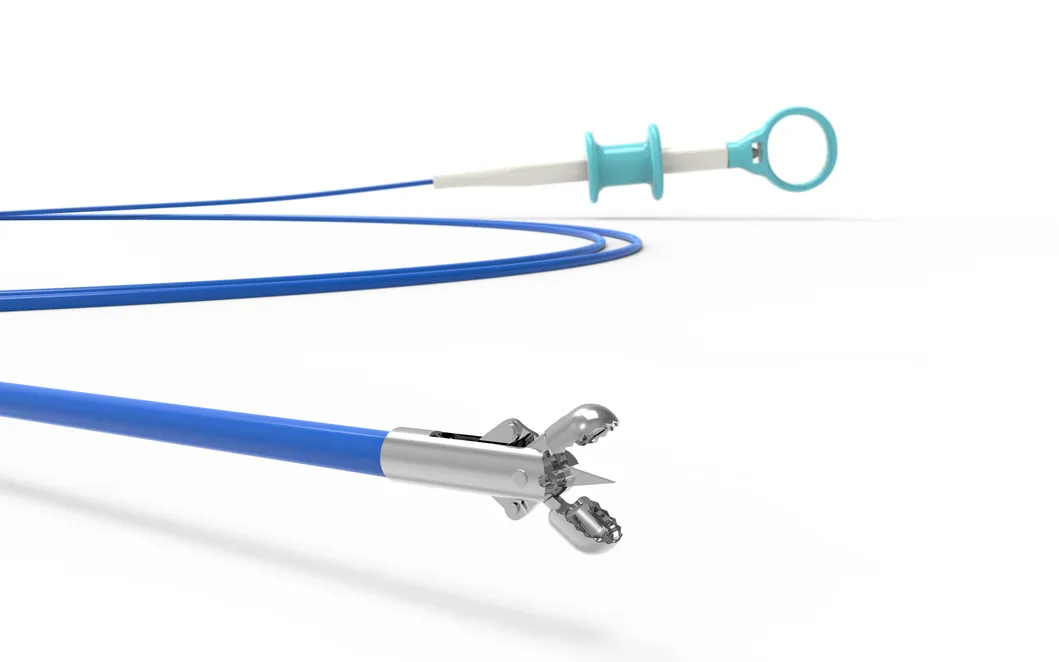

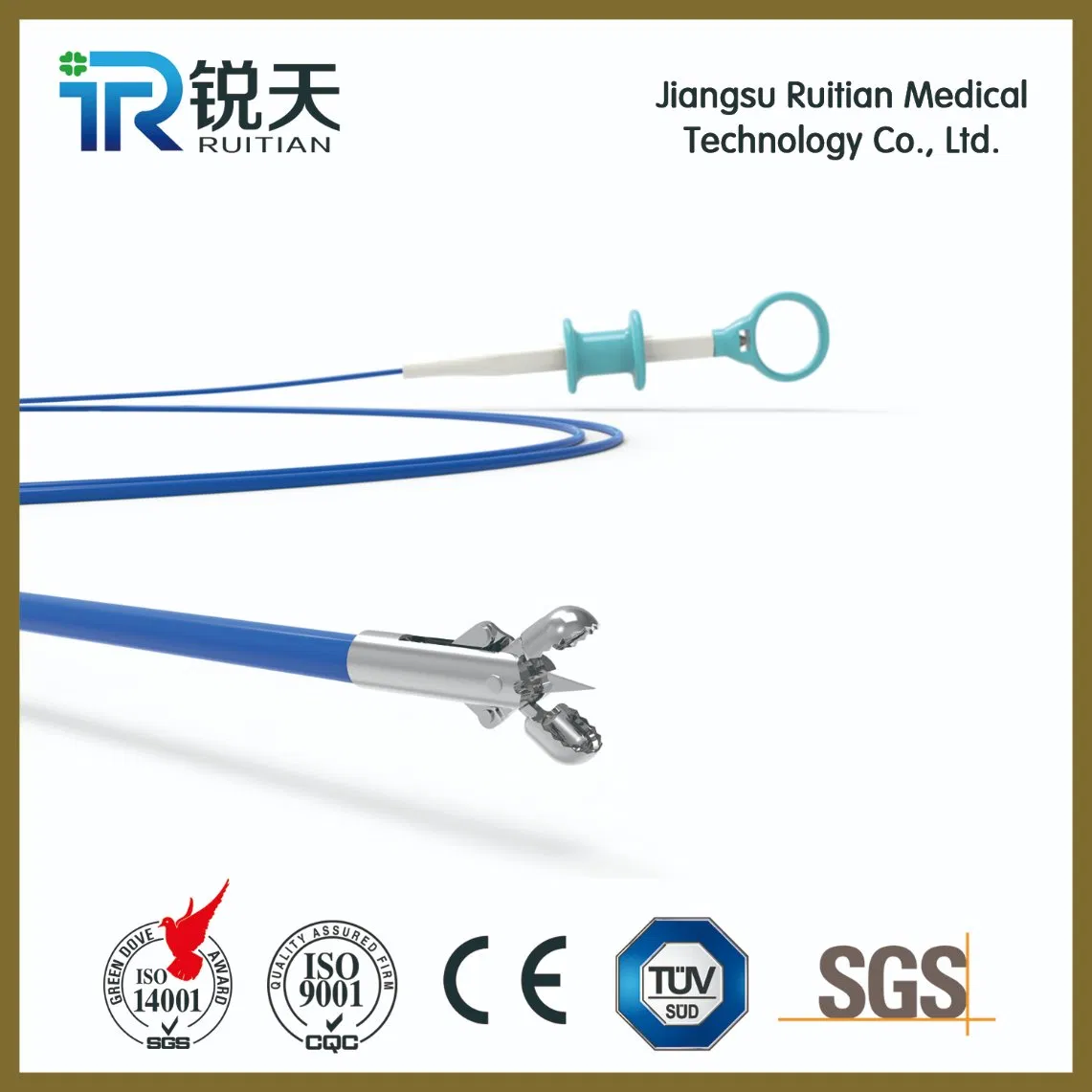

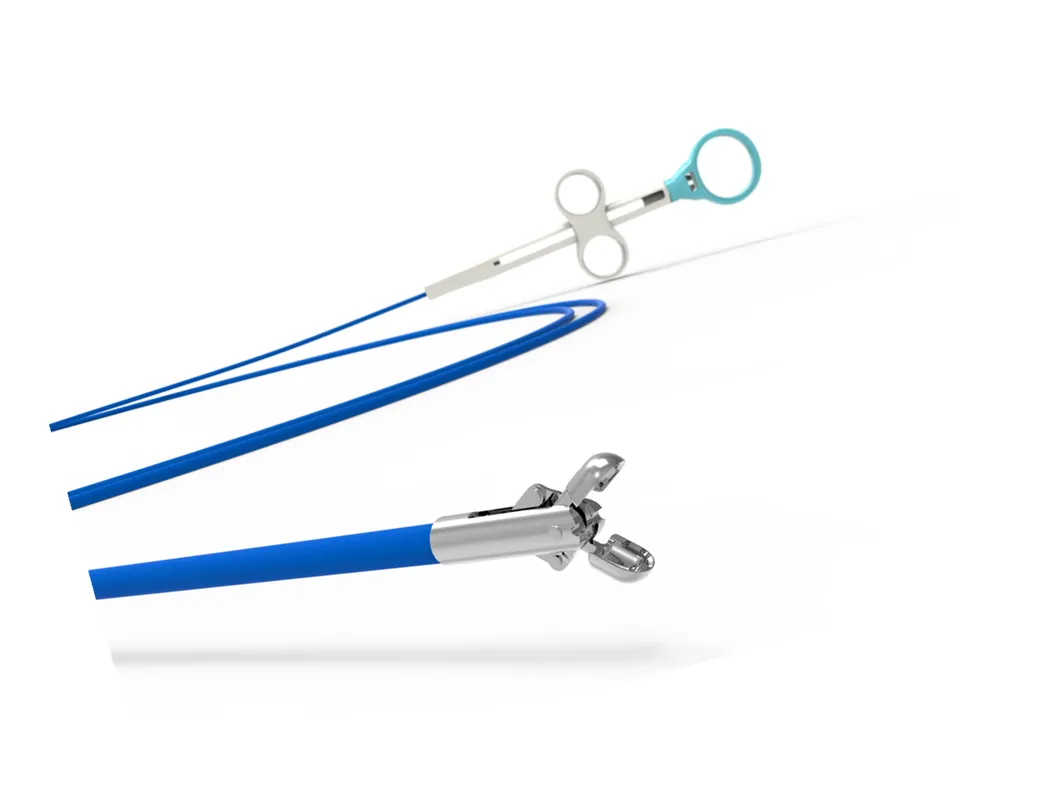

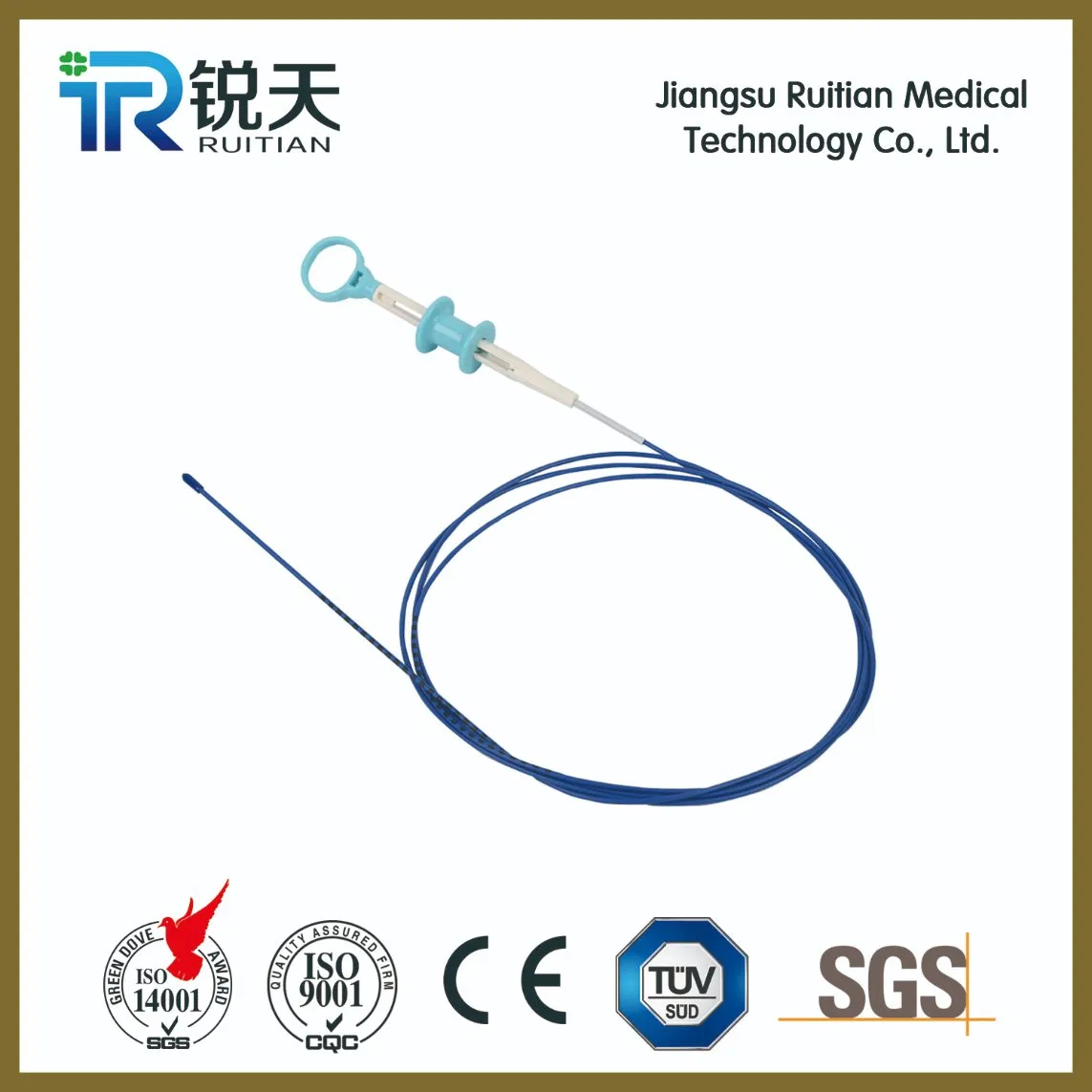

Disposable Biopsy Forceps 1.8mm/2.3mm CE Certificated

Product Description

Intended to use:
Disposable Biopsy Forceps are used in combination with endoscope to sample tissues from digestive tract and respiratory tract.
Features
The wide choice of disposable biopsy forceps ensures that you are perfectly equipped for every application.

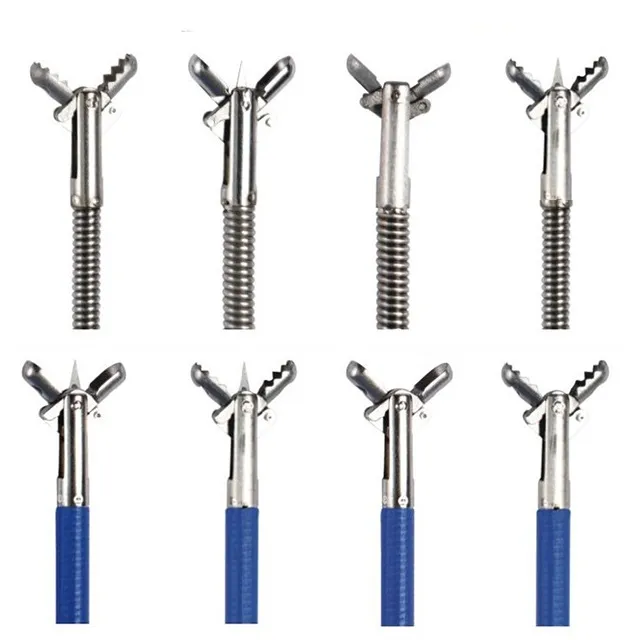

We offers forceps with diameters of 1.8 mm, 2.3 mm. Regardless of whether they are tapered, with or without a spike, coated or uncoated and with standard or toothed spoons - all models are characterised by their high reliability.
The excellent cutting edge of the biopsy forceps allows you to take diagnostically conclusive tissue samples in a safe, easy manner.
The head can be 360 degree direction rotated by the handle.
Innovational 4-bar linkage design, offering an excellent rigidness.
Specification:
According to register product standard, disposable biopsy forceps is differentiated by the diameter of closed jaw, effective working length,

Jaw head	Oval /Teeth	With spike/ without spike
Size	1.8mm for 2.0 scope	2.3mm for 2.8mm scope
Outer tube	Pe coated/uncoated
PE coated tube	With graduation /without
Length	800mm---2300mm

with or without spike, with or without coating and the shape of jaw.
Material Tabl

Component	Material	Standard
Spike	X5CrNi18-10, X5CrNiCuNb16-4	EN10088-1-2005
Jaw	X5CrNi18-8, X5CrNiCuNb16-4	EN10088-1-2005
Spring Sheath	X5CrNi18-10	EN10088-1-2005
Pulling Wire	X5CrNi18-10	EN10088-1-2005
Slider	ABS	ISO2580-1-2002
Handle	ABS	ISO2580-1-2002
Protective Sleeve	TPE	ASTM D5927-2009
Coating	PE	ASTM D7436-2012
