Product Description

Medical Instrument ISO 11140 Bowie Dick Pack Medical Test Equipment Card

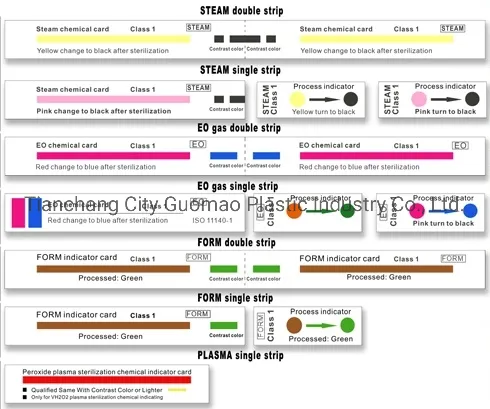

Type I :STEAM/EO/PLASMA/FORM INDICATOR STRIP

STEAM Sterilization Indicator Strip
Standard:	Complies with ISO11140 & EN867

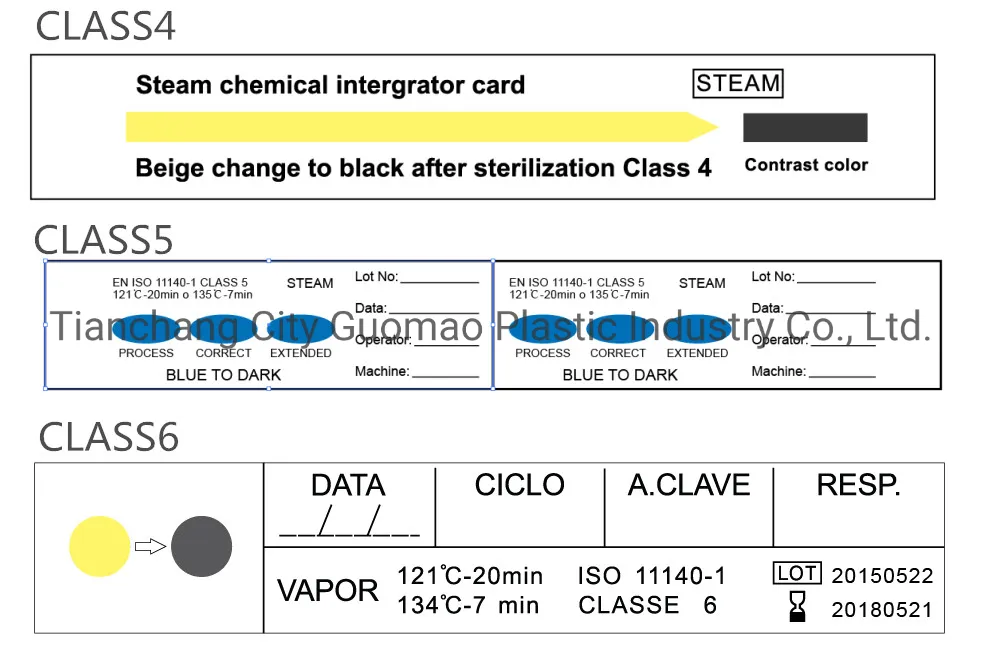

Classify:	Class4&class5&class6
Sterilization color change	From Yellow turn to Black(after steam sterilization)
Sterilization Condition:	Gravity displacement sterilizer: 121°C, 20 minutes
Sterilization Condition:	Pre-vacuum steam sterilizer:132 ~ 134 °C, 4~6 minutes.
Features:	1. Used to monitor sterilization exposure in steam sterilization processes. 2. The chemical indicator patch on the tape will change color:from yellow to black ---when exposed to steam sterilization processes to prove the pack has been sterilized

EO/FORM/PLAMSA Sterilization indicator Strip
Standard:	Complies with ISO11140 & EN867
Style:	Single/Double
Sterilization color change :	1.EO:Red to blue
	2.FORM:Brown to Green
	3.Plasma:Red to Yellow
Sterilization Condition:	1.EO
	2.FORM
	3.PLASMA
	1.Clear instructions and easy to read results 2.Immediate and accurate verification of load exposure to correct parameters of sterilization (time, temperature and steam).

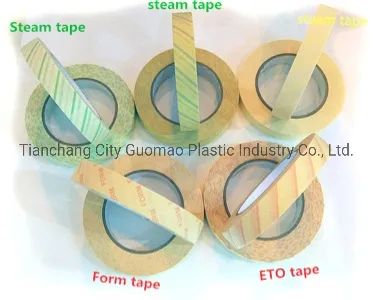

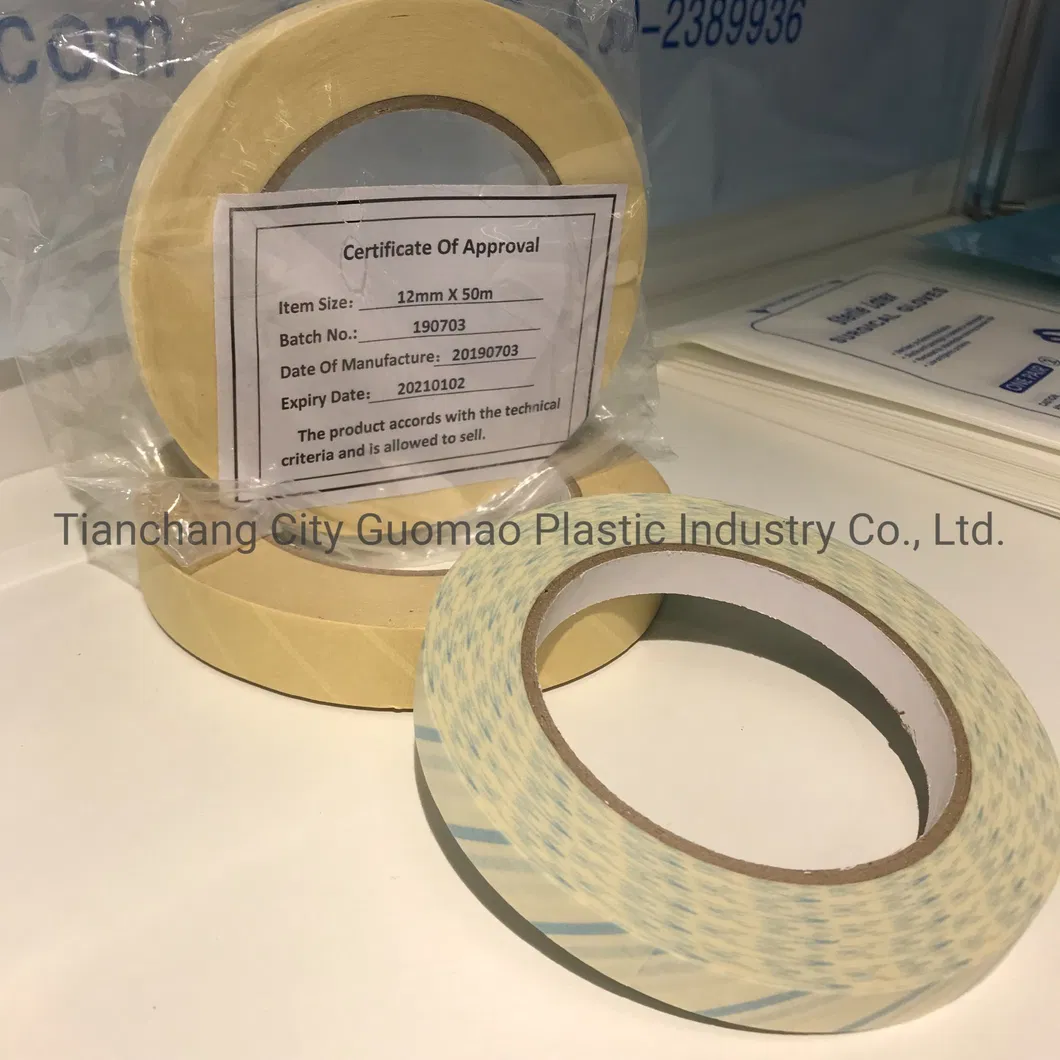

Type II:STEAM/ETO/FORM INDICATOR TAPE for medical packaging

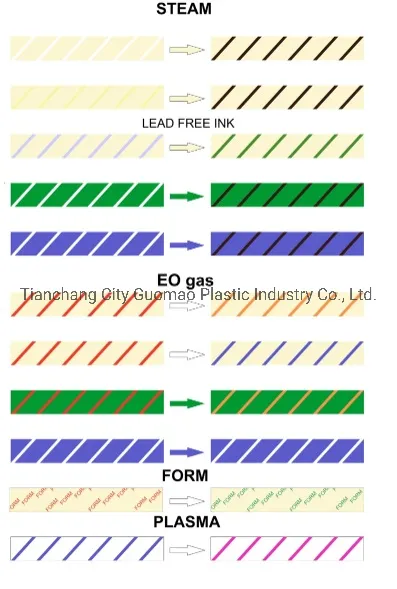

DESCRIPTION	ITEM NO	SIZE	PACK(PCS/CTN)	COLOR CHANGE
Steam Indicator Tape	GMST-1250	12mm*50m	76rolls/ctn	Yellow turn to black(Under steam sterilization)
	GMST-1950	19mm*50m	48rolls/ctn
	GMST-2550	25mm*50m	36rolls/ctn
EO Indicator Tape	GMET-1250	12mm*50m	76rolls/ctn	Red turn to Green(Under EO gas sterilization
	GMET-1950	19mm*50m	48rolls/ctn
	GMET-2550	25mm*50m	36rolls/ctn
Plasma Indicator Tape	GMPT-1250	12mm*50m	76rolls/ctn	Blue turn to Wine-Red(Under plasma sterilization)

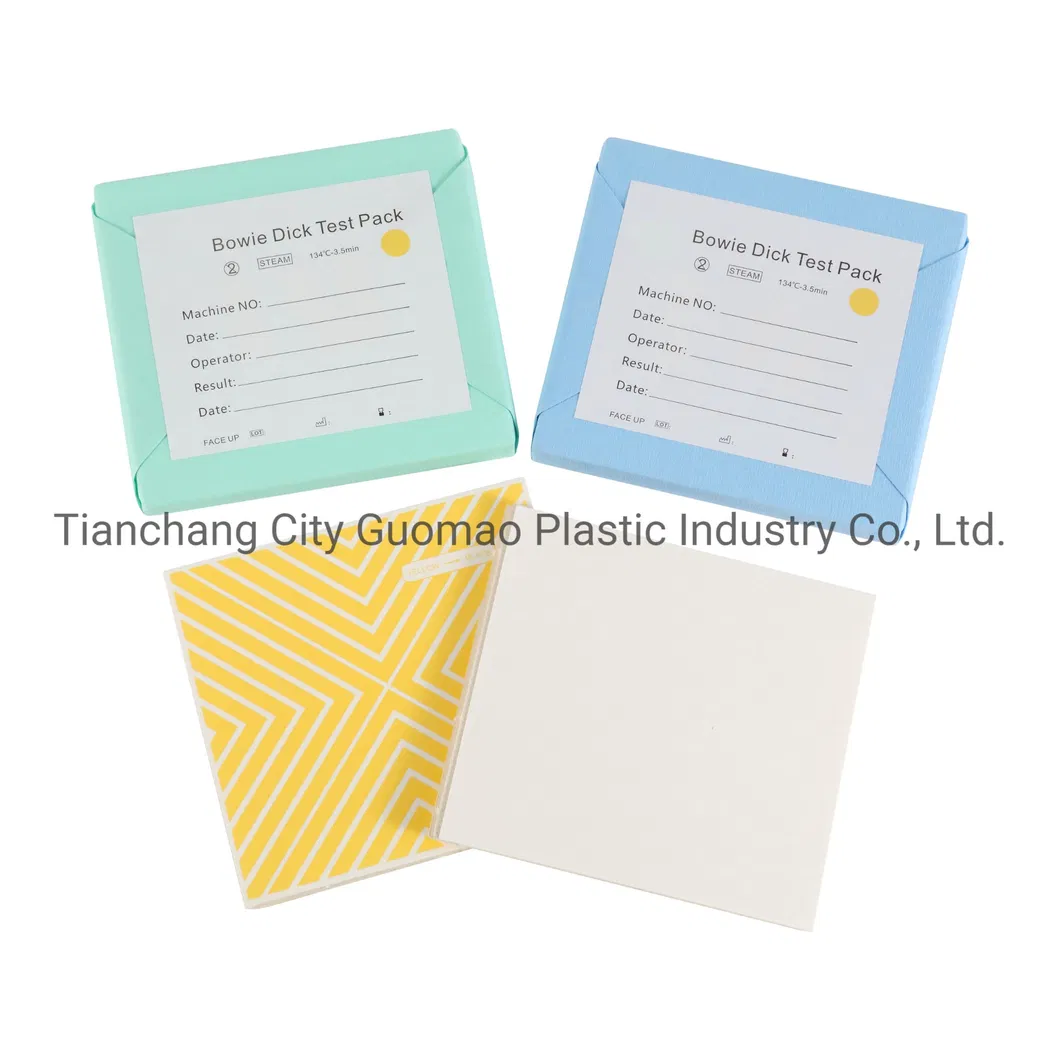

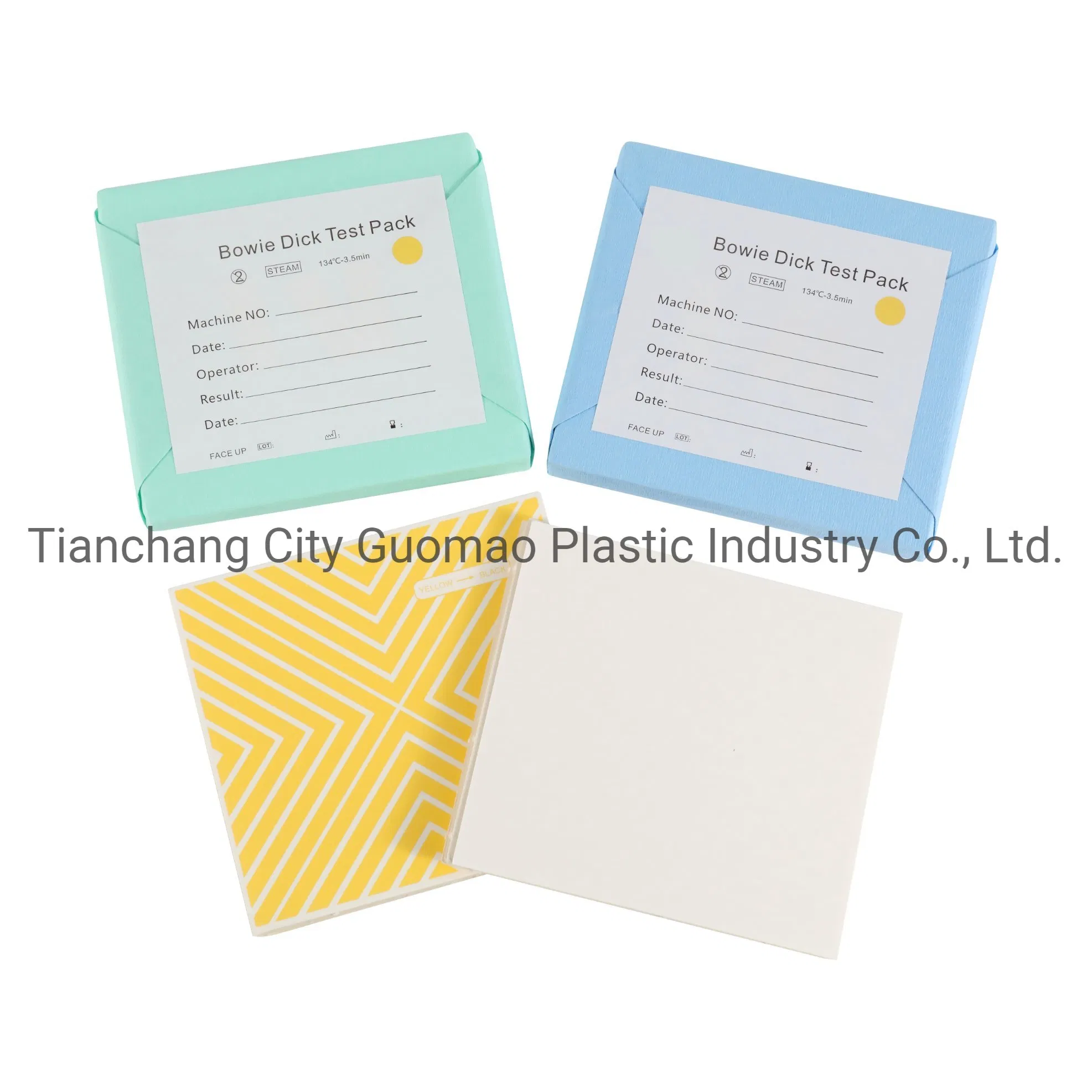

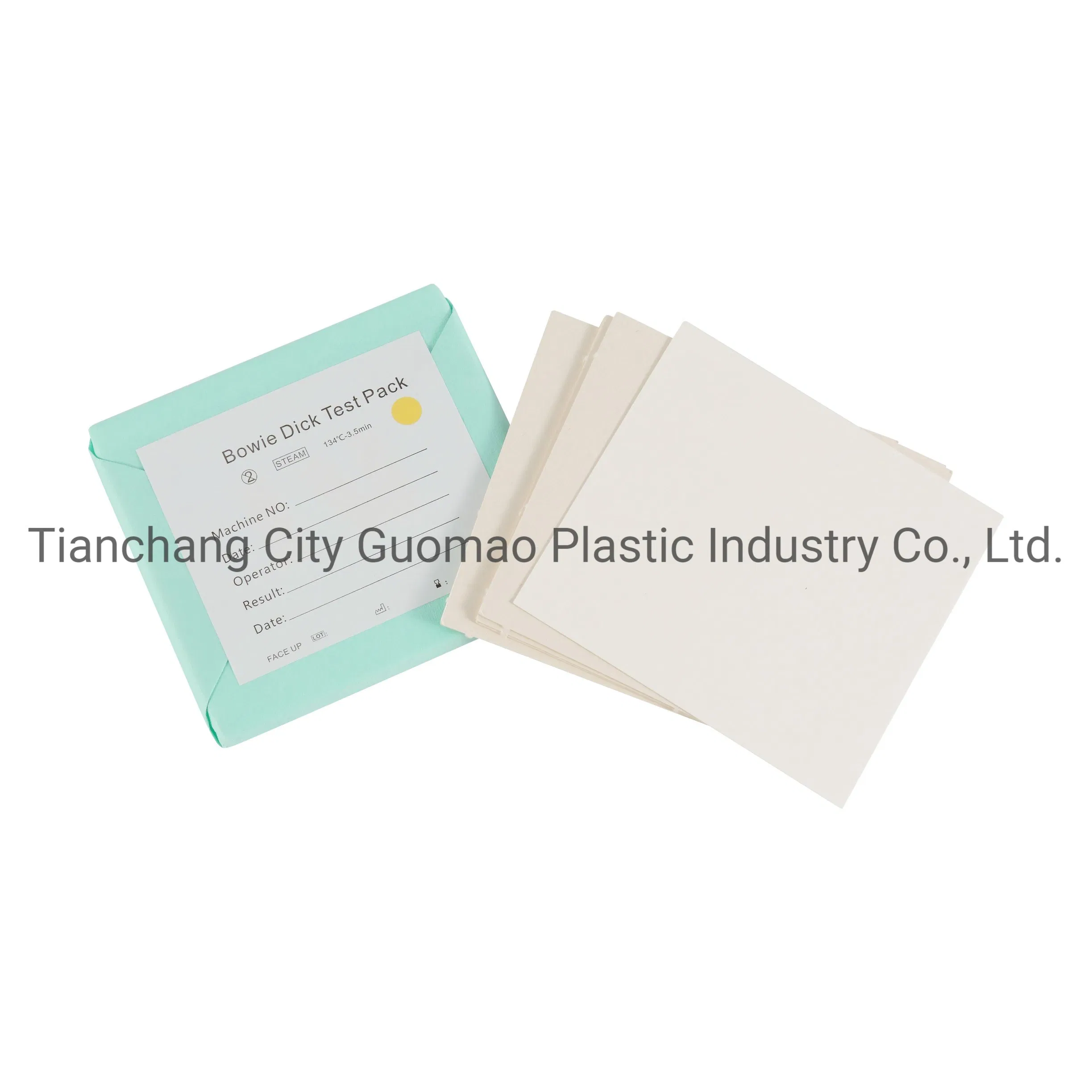

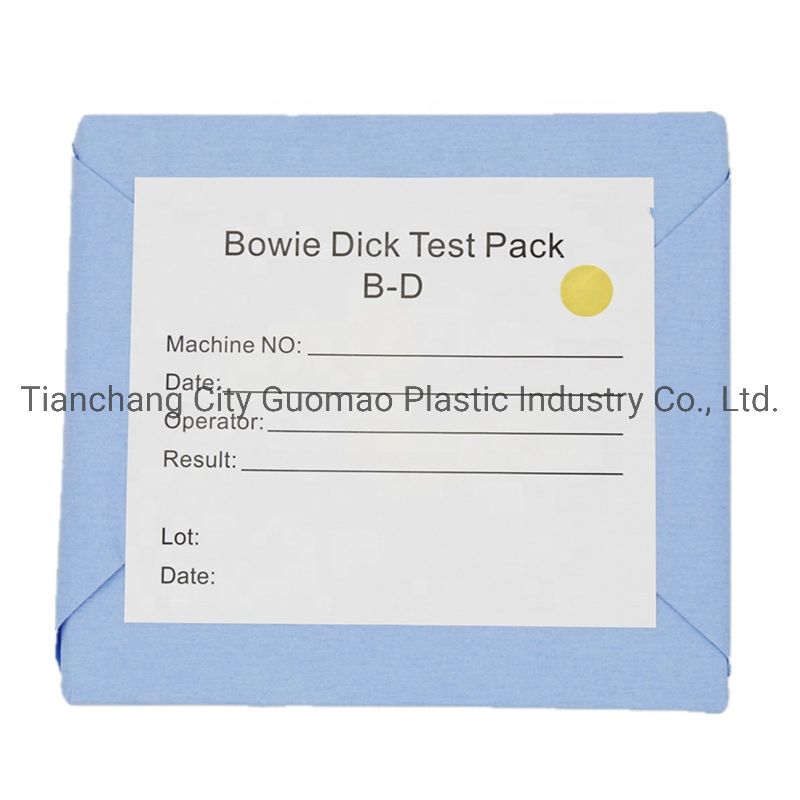

Type III:Bowie & Dick Test Packs

Sterilization principle	1.Bowie & Dick Test Pack was developed to control air removal and steam penetration performance in vacuum-assisted steam sterilizers.
	2.Bowie & Dick Test Packs are single-use devices that consist of a lead-free chemical indicator

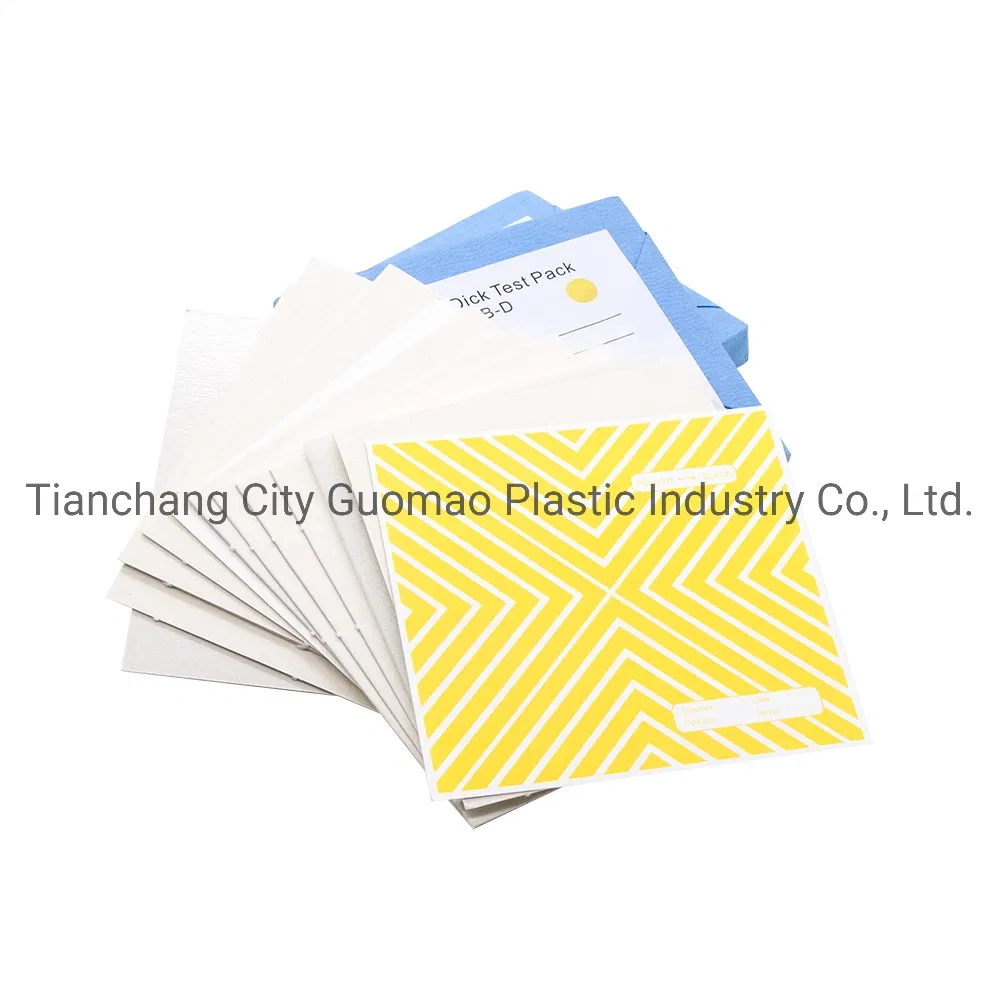

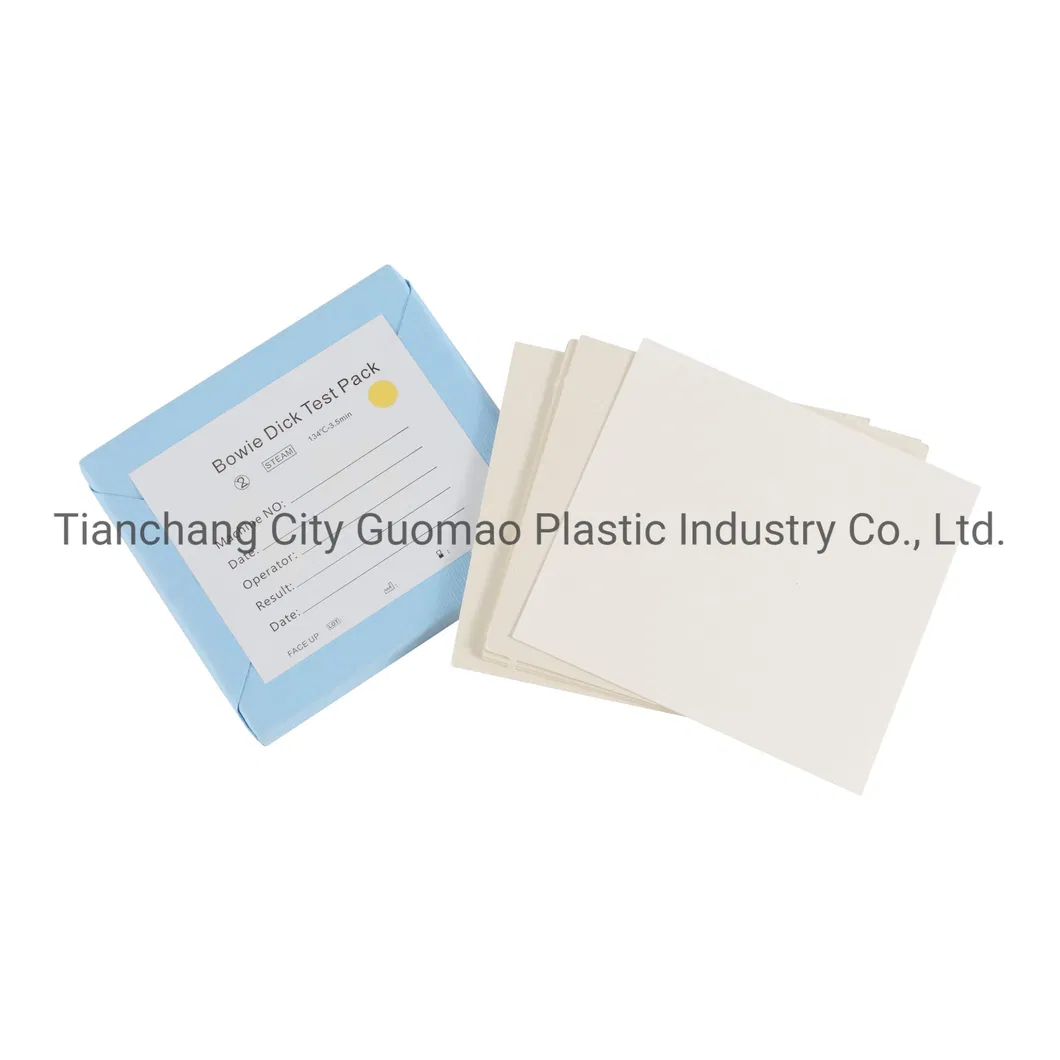

	3.BD Test Sheet, placed between porous sheets of paper, wrapped with crepe paper, with a Steam indicator label on the top of the package. If the circle does not turn to a uniform black color, this is evidence of an imminent failure in the sterilizer, indicating that maintenance should be scheduled.
	4.A uniform and complete color change on the BD Test Sheet indicates adequate air removal and steam penetration. A failure in air removal, poor quality steam, superheated steam and/ or non-condensable gases in steam supply are evidenced as a non-uniform color change in some areas of BD Test Sheet.
Useful tips:	• Bowie & Dick Test Pack should be used on a daily basis, every time the sterilizer is put into operation, before the first cycle and the first load to be sterilized. Start a shortened cycle (eg. omitting the phase of post-vacuum drying) to adequately heat up the sterilizer.
	• Bowie-Dick Test Packs should be used daily; after a sterilizer is installed or relocated; after a sterilizer malfunction; after sterilization process failures; and after major repairs of the sterilizer.
	• Place the Bowie & Dick Test Pack horizontally with the chemical label facing up inside an empty chamber, on the bottom shelf or at the front of the sterilizer support and over the drain.
Bowie & Dick Test Pack are manufactured under ISO 11140 (Parts 1, 4 and 5) International Standards and elaborated under the Quality Management Systems ISO 13485 and ISO 9001.

Name:	Autoclave Sterilization indicator BD bowie dick test pack for steam sterilization
Model:	BD10
Size:	115*125mm
Material:	steam penetration (air removal) barriers in the center
Feature:	Bowie and dick test pack offered by us are single use test packs that allow users to successfully perform daily Bowie & Dick test in an effective & simple way. The advantages of single use test pack is that it is absolute safe in handling & reproducible in results. It consists of a series of steam penetration (air removal) barriers in the center of which is a chemical indicator sheet. Used for daily monitoring of pre-vacuum steam sterilizer. The Bowie Dick pack makes the operator a right control of the autoclave and verify possible defects during Bowie Dick's cycle. Bowie-Dick test packs should be used daily, especially after a sterilizer is installed, relocated, after sterilizer malfunction, after sterilization process failures, and after any major repairs of the sterilizer. Single use Bowie Dick pack is characterized by most reliable test such as: 1. Point out the presence of air leaks in the autoclave immediately and accurately; 2. Nontoxic ink and completely recycled materials; 3. Color Change: yellow to brown These products are CE marked and meet the requirements of EN 867 and ISO 11140-1; Operation Condition: 134ºC, 3.5 minutes; 120ºC, 15 minutes
Certificate:	CE/ISO13485

Medical Instrument ISO 11140 Bowie Dick Pack Medical Test Equipment Card

1) Q: How long for the production time ?
A: Normally production time of products is from 3 days to 15 days depending on the quantity ordered. If you need a rush order, contact our representatives to discuss your specific needs.

2). Q: Can you make certificate of origin (C/O) and Quality certificate?
A: Yes. If requested, certificate of origin and quality certificate can provide when goods are sent.

3) Q: Do you have CE or ISO for your products?
A: Yes, we have CE and ISO. Our products have been exported to USA and EU countries since 2006.

4) Q:Can you provide samples?
A:Yes, we'll send the sample out after sample order confirmed.
